Solutions for outdoor server rack heat dissipation

Page Content

Effective heat management for outdoor server racks requires a combination of strategic airflow design, active cooling systems, and environmental monitoring to prevent overheating and ensure reliable operation.

Key Cooling Strategies

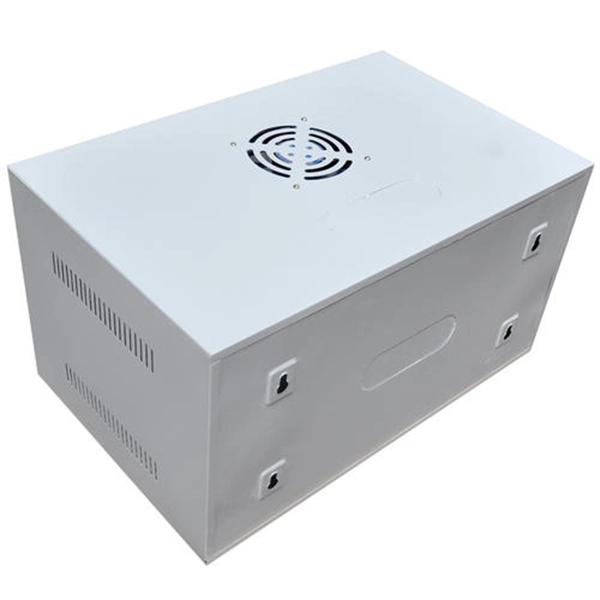

1. Passive Cooling: Utilize natural convection through louvers, vents, and perforated surfaces to allow heat to escape without mechanical assistance. This is suitable for low-density racks or mild climates but may be insufficient for high-density outdoor setups or extreme temperatures . 2. Forced Convection: Install fan kits within the cabinet to actively move air through the rack. Fans should be sized according to heat load and airflow requirements, and filters should be maintained regularly to prevent dust accumulation . 3. Active Cooling: For high-density or harsh outdoor environments, consider cabinet AC units or thermoelectric coolers. These systems use refrigerant or Peltier-based technologies to maintain stable internal temperatures despite fluctuating ambient conditions .

Airflow and Layout Management

Hot and Cold Aisle Containment: Align racks so that cold air intakes face each other and hot air exhausts face each other. This prevents mixing of hot and cold air, improving cooling efficiency .
Front-to-Back Airflow: Ensure servers pull cool air from the front and exhaust hot air at the back. Avoid side-to-side airflow mixing, which can create hotspots .
Blanking Panels and Cable Management: Seal unused rack spaces and organize cables to prevent airflow obstruction and recirculation of hot air .
Perforated Panels: Use perforated tiles or panels strategically to direct cold air toward server intakes, especially in raised-floor or ventilated outdoor enclosures .

Equipment Considerations

High-Efficiency Servers: Use ENERGY STAR-rated or modern low-power servers to reduce heat output .
Rack Density: Avoid overloading racks, as high-density configurations can create airflow bottlenecks and hotspots .
Outdoor-Specific Enclosures: Choose weatherproof cabinets with UV protection and insulation to mitigate solar heating and ambient temperature fluctuations .

Monitoring and Maintenance

Temperature Sensors: Deploy sensors at multiple points within the rack to detect hotspots and adjust cooling dynamically .
Regular Maintenance: Clean fan filters, inspect airflow paths, and verify AC or thermoelectric unit performance to maintain optimal cooling .
Environmental Monitoring: Track ambient temperature, humidity, and solar exposure to anticipate cooling needs and prevent thermal stress .

Advanced Techniques

In-Rack or Liquid Cooling: For extremely high-density outdoor racks, consider liquid cooling or in-rack cooling units that remove heat directly at the source, improving efficiency over air-based methods .
Custom Engineering Solutions: Tailor cooling systems to specific environmental conditions and operational requirements, using engineering documentation and performance modeling to optimize thermal management . By combining these strategies—airflow optimization, active cooling, equipment selection, and continuous monitoring—outdoor server racks can maintain safe operating temperatures, extend hardware lifespan, and ensure reliable performance even in challenging environmental conditions.
