How to connect a server to a switch

How to connect a server to a switch

How to connect a server to a switch - BENNIE OPTICAL [PDF]

Page Content

To connect a server to a switch, use a compatible network interface card (NIC) and cable to link the server to the switch port, then configure the switch port for proper speed, duplex, and VLAN settings.

Physical Connection

Install a Network Interface Card (NIC): Servers typically use PCIe NICs that support the required speed (1G, 10G, 25G, 40G, or 100G) and may provide copper or optical ports .

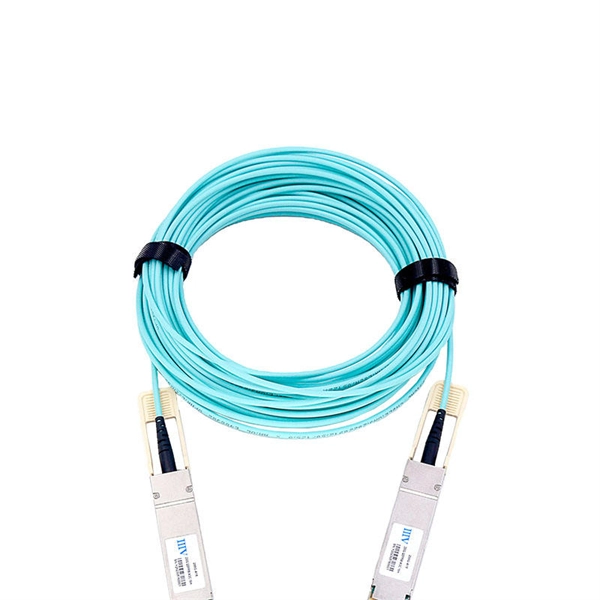

Select the Appropriate Cable: Use Ethernet cables (Cat5e/Cat6/Cat6a) for copper connections or optical fiber with SFP/SFP+/SFP28/QSFP modules for high-speed links .
Connect to the Switch: Insert the NIC into the server, attach the cable to the NIC, and plug the other end into the switch port. For high-speed connections, ensure the switch port matches the NIC's speed and module type .

Switch Configuration

Set Port Speed and Duplex: Configure the switch port to match the server NIC's speed and duplex to avoid mismatches .
VLAN Assignment: If the server needs to communicate on a specific VLAN, configure the switch port as an access port for that VLAN or as a trunk if multiple VLANs are required .
Spanning Tree Considerations: For servers in secure racks, enabling edge-port or port-fast mode can reduce STP delays, but avoid disabling STP if there is a risk of network loops .
Port Description: Add a descriptive label to the switch port for easier management and troubleshooting .

Redundancy and Load Balancing

Multiple NICs: Servers with multiple NICs can be configured for active/standby or load balancing modes to improve reliability .
Link Aggregation: Use EtherChannel or port-channel configurations on the switch to combine multiple NICs for higher throughput and redundancy .

Testing and Verification

Check Connectivity: Verify link lights on both the server NIC and switch port.
Ping Test: Test network connectivity to ensure proper communication.
Monitor Performance: Use switch and server monitoring tools to confirm throughput and error-free operation. Following these steps ensures a stable, high-performance connection between your server and switch, while maintaining network reliability and scalability .
